Everything you need to calculate gas springs, oil brakes, and sliding door dampers HAHN Gasfedern calculation tools

Our specialists can provide you with custom calculations to find the optimal product for your gas spring, oil brake, or sliding door damper needs. Simply fill out the relevant forms to receive your no-obligation calculation.
-

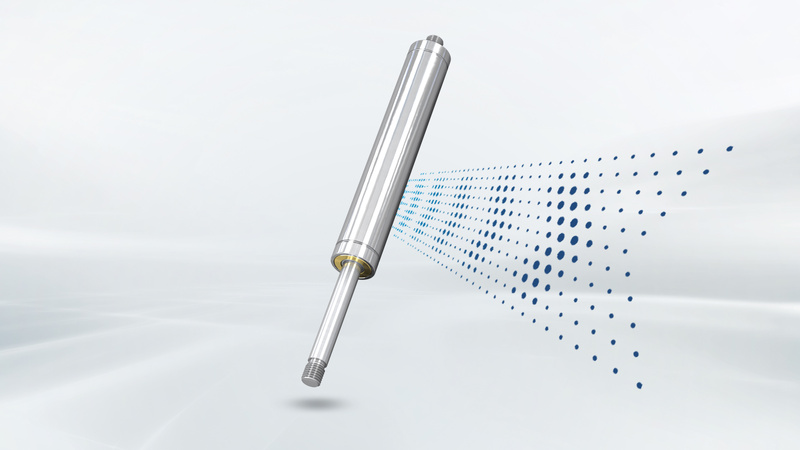

Customized gas spring calculation
Our experts are available to help you calculate your custom gas pressure or gas tension springs. You can request your no-obligations calculation quote by filling out the form and attaching any CAD drawings, sketches, or pictures of the application that you may have and describing the installation case in detail. We will help you find the right solution for your application.
-

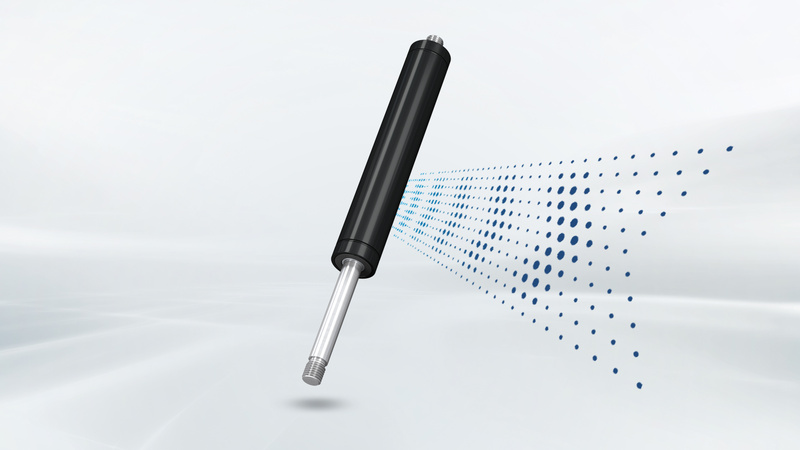

Precise oil brake calculation
Our fixed oil brakes are ideal for providing gentle and even braking for your feed devices or linear drive units. We can adapt the damping precisely to your needs by adjusting the braking force from 5 to 2,500 N, which can act in tension, compression, or both directions. Please note that oil brakes have a short idle stroke without damping.
-

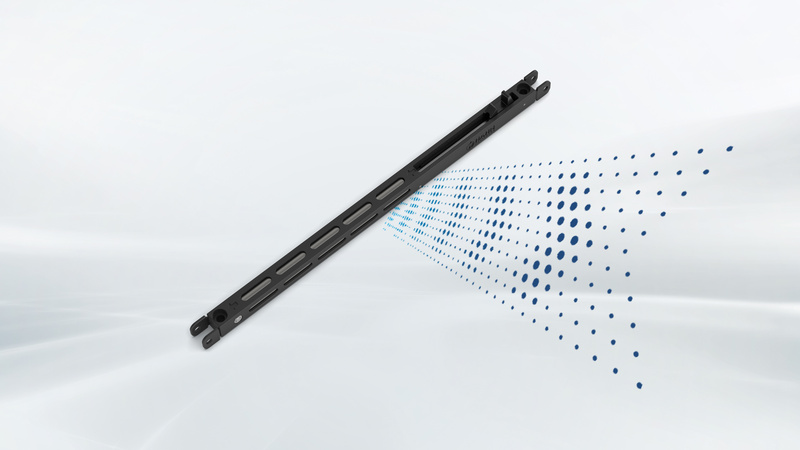

Exact SDD calculation
The Sliding Door Damper (SDD) from HAHN combines two gas springs and an oil brake in one component and ensures gentle braking and harmonious movements for heavy doors or windows. This innovative element enables cushioned docking, degressive braking, and gentle closing for linearly moving masses of between 40 to 400 kg. Our experts calculate the optimal design of the door dampers based on your information.

HAHN Learnings and FAQs
Find out more about the operation, installation and maintenance of HAHN Gasfedern. Our FAQs provide answers to your questions.
-
Customer Service
With HAHN Gasfedern Customer Service, you are in the best possible hands. Contact us with your concerns or requests for individual sampling or refills – We offer tailor-made solutions for your requirements and can help you to ensure that your gas springs function perfectly for your application.
-
Training
The HAHN Gasfedern training offers engineers, technicians, and buyers practical training on how to optimally use our gas springs. Thanks to our individual courses, manufacturing insights, and configuration options, we assist you with your product development and help you to avoid potential problems at an early stage.
